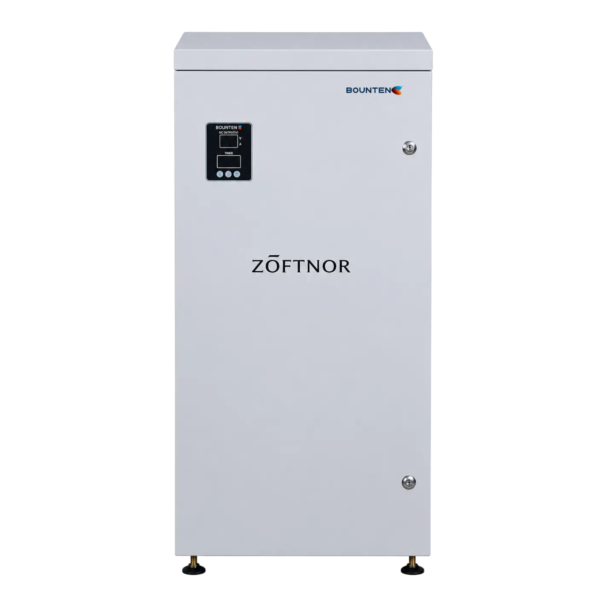

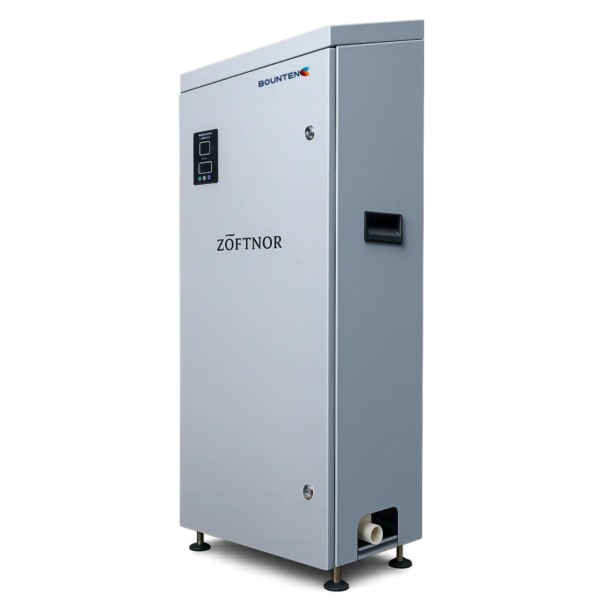

ZOFTNOR Pro
Electrolysis-Based Water Conditioning System
1. Product Overview
ZOFTNOR Pro is an advanced Electrolysis-Based Water Conditioning System designed to minimize the adverse effects of hard water in residential, commercial, and industrial applications.
The system operates without salt, chemicals, or regeneration cycles, providing an environmentally friendly and low-maintenance solution for water conditioning. Its innovative electrolysis technology helps improve water quality while reducing scaling and hard water-related issues.
2. Product Range
| Series | Model Range | Flow Capacity Range |
|---|---|---|
| ZOFTNOR Pro+ | W1 – W8 | 1,000 LPH to 8,000 LPH |
3. Model Specifications
To ensure technical clarity, the specifications are divided into performance and physical dimensions.
Performance & Power
| Model | Flow Capacity (LPH) | Connection Size | Power Rating |
|---|---|---|---|
| W1 | 1,000 | 1″ | 400 W |
| W2 | 2,000 | 1″ | 400 W |
| W3 | 3,000 | 1″ | 600 W |
| W4 | 4,000 | 1″ | 700 W |
| W5 | 5,000 | 1¼” | 700 W |
| W6 | 6,000 | 1¼” | 900 W |
| W7 | 7,000 | 1½” | 900 W |
| W8 | 8,000 | 1½” | 900 W |
Reactor Dimensions
| Model | Reactor Length (mm) | Reactor Diameter (mm) | Anode Size (mm) |
|---|---|---|---|
| W1 | 710 | 75 | 36 × 460 |
| W2 | 710 | 75 | 36 × 600 |
| W3 | 710 | 75 | 40 × 600 |
| W4 | 710 | 75 | 45 × 600 |
| W5 | 1000 | 75 | 40 × 900 |
| W6 | 1000 | 102 | 45 × 900 |
| W7 | 1000 | 102 | 50 × 900 |
| W8 | 1000 | 102 | 55 × 900 |
4. Standard Technical Features
| Parameter | Specification |
|---|---|
| Technology | Electrolysis-Based Water Conditioning |
| Installation | Plug & Play |
| Salt / Chemical Requirement | Not Required |
| Internal Processing | 18-Level Process |
| Reactor Material | SS 304 with MMO Coating |
| Mesh Coating | 0.06 Micron Iridium |
| Input Voltage | 220V AC / 50Hz |
| Output Voltage | 8V – 12V DC |
| Timer / Operation | Built-in Digital Timer / Automatic ON/OFF |
| Working Life | Up to 18 Years |
5. Scope of Supply
Each ZOFTNOR Pro unit is supplied complete with:
- Electrolysis Reactor Assembly
- Control Panel Box with Built-in Digital Timer System
- Automatic ON/OFF Switch
- 20″ Bag Filter / Disc Filter Housing
- Wall Mounting Kit
- Standard Electrical Connections
- User Manual
6. Installation Requirements
To ensure proper operation, the following site requirements shall be provided
- Power: 220V AC Single Phase Power Supply.
- Plumbing: Suitable Inlet and Outlet Pipeline Connections.
- Environment: Dry, dust-free, and well-ventilated installation area.
- Pre-Filtration: Pre-filter installation (Included in scope).
7. Key Benefits
- Salt-Free Operation: No salt consumption and no brine discharge.
- Chemical-Free Technology: No chemical dosing or additives required.
- Eco-Friendly Solution: Environmentally responsible water conditioning.
- Minimal Maintenance: No regeneration cycles and reduced servicing requirements.
- Long Service Life: Engineered for reliable operation up to 18 years.
- Plug & Play: Quick and simple installation process with a compact design.
8. Applications
The ZOFTNOR Pro system is ideal for:
- Residential: Villas, Apartments, and Domestic Water Supply.
- Hospitality & Health: Hotels, Resorts, and Healthcare Facilities.
- Commercial: Office Buildings and Institutional Projects.
- Industrial: Process Water, Cooling Towers, and Boiler Feed Water.
9. Product Summary
| Attribute | Details |
|---|---|
| Product Name | ZOFTNOR Pro+™ |
| Capacity | 1,000 – 8,000 LPH |
| Operation | Fully Automatic |
| Maintenance | Minimal |
| Expected Life | Up to 18 Years |
